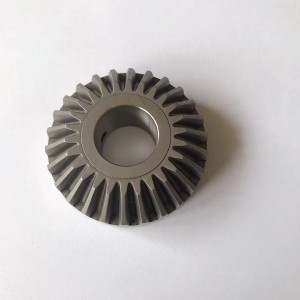

Powder Metallurgy Sintered Straight Bevel Gear
Material : ASTM B783-13 grade FC-0208-40 Surface Hardness : 35+/-2 HRC Number of tooth (Z): 26 Density : ≥ 6.8g/cm³ Tolerance: ISO2768-1(f) , ISO2768-2(H) Diameter: ø50*20mm The straight bevel gear is both the simplest to produce and the most widely applied in the bevel gear family. The areas of straight bevel gears application are generally limited to low-speed drives, where vibration and noise may not be significant. Applications: power tool, industrial machinery,actuator, medical applianc... -
Powder Metallurgy sintering hydraulic oil pump rotor
Material : JIS SMF 5030（Fe-Cu-C-Ni） Density: ≥6.8 g/cm3 Hardness : HRB 80-120 Tolerance : GB/T 1804(m)-2002; GB/T 1184(k)-1996; C 0.1-0.5x45°. Others: Oil content ≥18% . Appearance: No Crumbling, Cracks, Exfoliation, Voids, Metal Pitting and Other Defects. Powder metallurgy sintered internal and external gear pump rotors are widely used in automobiles, especially for oil pumps. Jingshi designed new tooth profile with smaller in size and can achieve lower torque and better fuel effici... -
Powder Metallurgy Sintered Block
Material standard :FC-0208& customized Density :≥6.6g/cm³ Furnish : Black steam oxide Appearance: No Crumbling, Cracks, Exfoliation, Voids, Metal Pitting and Other Defects. Surface Treatment :quenching, polishing,oil impregnation, black oxide, full hardening or as requested. Why choose the powder metallurgy process ? High utilization rate of raw materials, about 95% ; One-time moulding , no or less finishing process , lessen the cost ; Complex shape or structural parts are available wit... -

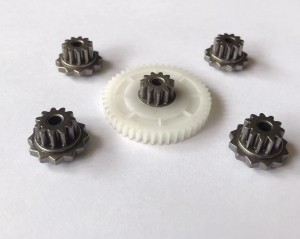

Iron-based precision pinion Spur Gearmotor Gears
Material Standard: MPF series, MPIF 35, DIN 30910, JIS Z2550 Density: 6.2 - 7.1 g/cm3 Macro Hardness: 45-80 HRA Tensile Strength: 1650 Mpa Ultimate Yield Strength(0.2%): 1270 Mpa Ultimate Surface treatment :Quenching, Polishing,Oil impregnation, black oxide, full hardening or as customized Powder Sintered Metal Spur Gear Advantages Low cost High gear ratios and torque output Compact Applications: Spur gear are usually used in the transmission system of automobile power ,(electric) wi... -
Iron-based powder metallurgy bushing
Product Description Powder metallurgy hexagonal bushing, flange bushing, complex bushing, iron-based bushing, stepped bushing, The sintered body produced by powder metallurgy using metal powder as the main raw material is inherently porous, and has the technical advantages of being able to freely adjust the number, size, shape and distribution of pores during the manufacturing process. The advantages of powder metallurgy bushing production: 1. The mass production cycle is short and the cost ... -
Powder Metal Sintered Bushing/Stainless Steel Sleeve Bearing
Product Description Sintered bushing, with tip bushing, square bushing, middle cover bushing, sealing bushing, spacer bushing, straight barrel bushing, mechanical equipment bushing Powder metallurgy oil-impregnated bushings are made of iron powder as raw materials, pressed by molds, sintered at high temperature and then shaped. Its matrix has fine and evenly distributed pores, which are formed into an oil-containing state after being vacuum-impregnated with lubricating oil. The product has t... -
Pulley for Timing Tensioner in Auto Engine
Powder metallurgy pulley is developed with reference to the original imported pulley specifications. The pulley is applied to the MC11/13 engine, which can correspond to the German Man engine D20/26 (D2066LF40), in addition to this model. Our company can also develop similar related products for customers. Application：Automotive, motorcycles, textile machinery, industrial sewing machines, power tools, hardware tools, Electrical, engineering machinery, etc. -

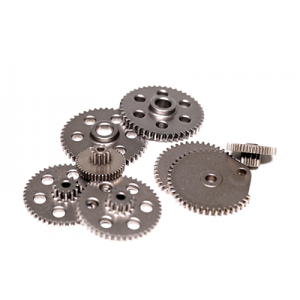

Custom Gears for Gearmotor
The advantages of powder metallurgy gears are as follows: 1. One-time molding: low cost, high production efficiency, one-time molding and finishing process, no need to reprocess gear teeth after molding. It can fully meet the dimensional accuracy requirements, especially the tooth shape accuracy. 2. Lubrication-free parts: Due to the processing characteristics of Powdered Metal Gears, oil-containing parts can be made to form lubrication-free parts. 3. High utilization rate of resources: There... -
customize micro gear for small motor
Material Iron Powder, Iron alloy powder Certificate CE, Rohs, ISO9001, TS16949 Tolerance +/- 0.002mm, Density Range 6-7.2/cm3(Fe) Surface Treatment According to customers’ requests Heat Treatment Ordinary Quenching, Carburizing, Ritriding, High Frequency Quenching Application Small motor for home appliance using Performance High Precision, High Wear Resistance, Low Noise, Smooth And Steady, Processing Technology Sintering process Mat... -
rack and pinion for greenhouse ventilation
Powder metallurgy gear Greenhouse Ventilation On-Off Mechanism OEM for the greenhouse ventilation system, drive system, widow opener system. -
Customized Oil pump inner rotor
Product Description Brand: OEM Certificate: ISO9001/TS16949 Place of origin: CHINA Material Standard: SMF series Density: 6.4-7.9 g/cm3 Hardness: HRA55-75 Weight: 10g Product Name Oil Pump Rotor Weight Range 1g~1.5kgs Technology Powder Metallurgy-Machining Certificate ISO9001/TS16949 Surface Treatment Quenching, steam oxidation, oil impregnation, e-coating, vibration grinding Tolerance ISO 2768 - m / H14, h14, +- IT14/2 Apperance No crumbling, cra... -
Manufacturer customized sintered gerotor for hydraulic pump
Product Description Brand: OEM Certificate: ISO9001/TS16949 Place of origin: CHINA Material Standard: SMF series Density: 6.4-7.9 g/cm3 Hardness: HRA55-75 Weight: 1g-1.5kgs Tensile Strength: 1250 Mpa Max. Yield Strength: 700 Mpa Max. Appearance: no crumbling, cracks, exfoliation, voids, metal pitting and other defect Detection: 100% Full Inspection Surface Treatment: Steam oxidation, Oil Impregnation, Polishing Production capacity: 100000pcs/month Moulding production: 20days Delivery date: 10... -
Metal Gear
Product Description Technology: Powder Metallurgy Material Standard: MPF series, MPIF 35, DIN 30910, JIS Z2550 Density: 6.2 - 7.1 g/cm3 Macro Hardness: 45-80 HRA Tensile Strength: 1650 Mpa Ultimate Yield Strength(0.2%): 1270 Mpa Ultimate Size Welcome OEM/ODM.We need your drawings in CAD, 3D or PDF. Or you send us your sample, we draw for you. Material Iron, copper, brass or as customized Surface Treatment Quenching, Polishing, Oil impregnation, black oxide, full hardening or as custom... -
-
Powder metal parts
Product Description Technology: Powder Metallurgy Surface Treatment: Quenching, Polishing Material Standard: MPIF 35, DIN 30910, JIS Z2550 Density: 6.2 - 7.1 g/cm3 Macro Hardness: 45-80 HRA Tensile Strength: 1650 Mpa Ultimate Yield Strength(0.2%): 1270 Mpa Ultimate Size: Customized Size Customized complex structure powder metallurgy gears, density, technical requirements are fully customized.
