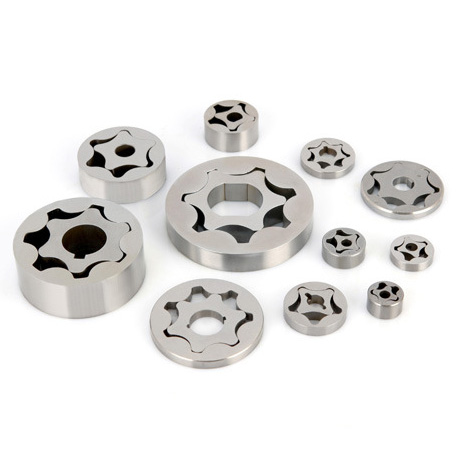

Oil pump rotor for automobile and motorcycle

Short Description:

Product Description Brand Name: Jingshi OE NO.: OEM Material Standard: SMF Series, F, FC, FN series, MPIF 35, DIN 30910, JIS Z2550 Surface Finish: Steam oxidation Others Products: Gear Density: 6.4-7.1 g/cm3 Apparent Hardness: 45-79HRA Tensile Strength: 1250 Mpa Max. Yield Strength: 700 Mpa Max. Supply Ability: 1000000 Piece/Pieces per Month Packaging Details 5/10 piece in one kraft paper roll, 60-70 Roll in one carton, or wooden box, pallet Carton sizes: 360x360x250, 360x230x240, carton we...


Product Detail

Product Tags

Product Description
Brand Name: Jingshi
OE NO.: OEM
Material Standard: SMF Series, F, FC, FN series, MPIF 35, DIN 30910, JIS Z2550
Surface Finish: Steam oxidation
Others Products: Gear
Density: 6.4-7.1 g/cm3
Apparent Hardness: 45-79HRA
Tensile Strength: 1250 Mpa Max.
Yield Strength: 700 Mpa Max.
Supply Ability: 1000000 Piece/Pieces per Month

Packaging Details
5/10 piece in one kraft paper roll, 60-70 Roll in one carton, or wooden box, pallet
Carton sizes: 360x360x250, 360x230x240, carton weight: 18 Kgs
Pallet sizes: 1200x810x830, 1200x810x1060, pallet weight: 600 to1000 kgs
Delivery Port:Tianjin, NingBo, ShangHai, Qingdao

Product Name

Oil Pump Rotor

Weight Range

1g~1.5kgs

Technology

Powder Metallurgy-Machining

Certificate

ISO9001/TS16949

Surface Treatment

Quenching, steam oxidation, oil impregnation, e-coating, vibration grinding

Tolerance

ISO 2768 – m / H14, h14, +- IT14/2

Apperance

No crumbling, cracks, exfoliation, voids, metal pitting and other defects

Process Flow

Powder mixing – Forming – Sintering – Oil impregnation – Sizing -Ultrasonic cleaning – Steam oxidation – Oil impregnation – Final inspection – Packing

Application

Gearbox, transmission case, electric tool
