The Evolution of Gear Production Technologies
The gear manufacturing industry has undergone revolutionary transformations over the past decades, with powder metallurgy emerging as a leading technology for creating precision components. As industrial applications demand increasingly sophisticated gearing solutions, manufacturers like Jingshi have pioneered innovative approaches to producing high-performance sintered gears that outperform traditional machining methods.
Global market analysis reveals the gear production sector is projected to reach $265 billion by 2027, growing at a CAGR of 4.2%. This expansion is primarily driven by demand from the automotive, aerospace, and electrical tool industries requiring compact, efficient power transmission systems capable of withstanding rigorous operating conditions.
The transition toward advanced manufacturing technologies has positioned powder metallurgy as the preferred method for high-volume gear production. Unlike subtractive machining techniques that waste up to 60% of raw material, PM processes conserve resources while maintaining precision engineering tolerances of ±0.05mm. This sustainable approach significantly reduces both production costs and environmental impact.
Material Innovations in Gear Production
Iron-based alloys continue to dominate the gear manufacturing industry due to their favorable balance of mechanical properties and cost-effectiveness. Material scientists at Jingshi have developed proprietary powder formulations optimized for specific application requirements:
- Iron-Carbon Alloys: Delivering tensile strengths from 400-850 MPa with excellent wear resistance
- Dual-Phase Steels: Achieving surface hardness of 60-65 HRC through advanced sintering techniques
- Copper-Infiltrated Materials: Providing superior thermal conductivity for high-RPM applications
- Pre-alloyed Powders: Enhancing microstructural homogeneity for improved fatigue strength
Recent advances in surface densification technology enable customized tooth profile hardness with core ductility, significantly extending gear service life while reducing noise and vibration in electric power tools and precision mechanisms.
Technical Specifications for Industrial Gears
Modern gear production demands strict adherence to international quality standards. Below is a comprehensive comparison of key specifications for powder metallurgy sintered gears across multiple performance categories:
| Parameter | Iron-based | Stainless Steel | Copper-Infiltrated | Industry Standard |
|---|---|---|---|---|
| Density (g/cm³) | 7.2-7.4 | 6.8-7.0 | 7.6-7.8 | 7.0 min |
| Surface Hardness (HRC) | 55-65 | 45-55 | 58-68 | 50-65 |
| Tensile Strength (MPa) | 550-750 | 500-700 | 600-850 | 450 min |
| Tooth Profile Accuracy (AGMA) | Q9-Q11 | Q10-Q12 | Q8-Q10 | Q10 max |
| Noise Level (dB) | 62-68 | 65-72 | 58-64 | 70 max |
| Thermal Expansion (10⁻6/K) | 12-13 | 16-18 | 14-15 | - |
The implementation of comprehensive quality management systems throughout the gear production process ensures these parameters are consistently maintained. Jingshi's manufacturing facilities operate under ISO 9001 and TS16949 certified protocols, with statistical process control monitoring over 23 critical parameters during sintering.

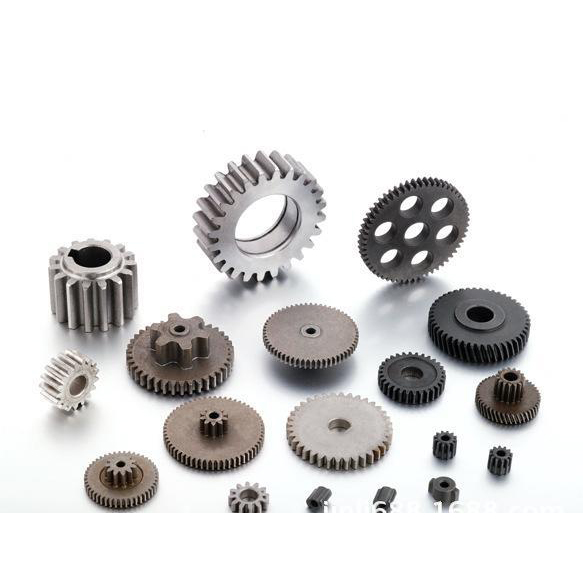

Jingshi's Powder Metallurgy Sintered Gears for Electrical Tools
Premium Gear Production Solutions
Jingshi's powder metallurgy sintered gears represent the pinnacle of modern gear production technologies. Specifically engineered for high-performance electrical tools, these precision components deliver exceptional durability and operational efficiency under demanding conditions.
Technical Specifications:
- Shape: Spur, Helical, Bevel
- Material: Iron-based powder, Steel, Stainless Steel, Copper
- Module Range: 0.3-2.0 (including gear module selection for specific applications)
- Certifications: ISO9001/TS16949
- Surface Treatments: High Frequency quenching, Oil impregnation, Plating
Performance Advantages:
- High Density - Superior load capacity and wear resistance
- Precision Engineering - Minimal backlash and noise generation
- Complex Geometries - Ability to manufacture non-standard tooth profiles
- Thermal Stability - Consistent performance across temperature variations
- Cost Efficiency - Up to 30% reduction compared to conventional machining
Applications in Industrial Systems
The versatility of Jingshi's sintered gears enables integration across multiple industrial applications:
- Power Tools: Cordless drills, impact drivers, rotary hammers operating at 15,000-25,000 RPM
- Automotive Systems: Seat adjusters, windshield wipers, power window mechanisms
- Industrial Automation: Robotics, CNC machinery, conveyor systems
- Medical Equipment: Surgical tools, imaging devices, patient handling systems
- Consumer Electronics: Precision drive systems for cameras, printers, home appliances
Expert Gear Module Selection Guidelines
Proper gear module selection is critical to optimizing performance in transmission systems. The module (m) represents the ratio between pitch diameter and number of teeth, directly affecting load capacity, noise characteristics, and mechanical efficiency.
Jingshi engineers recommend the following module selection criteria based on application requirements:
| Application Type | Recommended Module | Load Capacity | Speed Range (RPM) | Precision Grade |
|---|---|---|---|---|
| Precision Instruments | 0.3-0.6 | Low | AGMA 10-11 | |
| Power Tools | 0.5-1.0 | Medium | 10,000-25,000 | AGMA 8-9 |
| Automotive Auxiliaries | 1.0-1.5 | Medium-High | 1,000-5,000 | AGMA 7-8 |
| Industrial Machinery | 1.5-2.5 | High | 500-3,000 | AGMA 6-7 |
Technical FAQ: Solving Gear Production Challenges
Industry References & Technical Resources
The following resources provide authoritative information about gear production technologies and powder metallurgy applications:
- American Gear Manufacturers Association: Technical Papers on Gear Manufacturing (2023)
- Powder Metallurgy Review: Advances in Powder Metallurgy Gear Manufacturing, Vol. 12, Issue 3
- ASM International: Powder Metallurgy Technologies and Applications (2022)
- International Journal of Powder Metallurgy: Fatigue Performance of Sintered Gears (2023)
- VDI Guideline 2736: Thermoplastic Gear Standards (2022 Edition)
