A Field Note on Sprockets Gear for Modern Drives: Powder-Metallurgy Steps Up
If you’ve ever chased a rattly chainline, you know the humble gear-sprocket can make or break a drivetrain. Lately, engineers I talk to are leaning into powder metallurgy for Sprockets Gear—especially when they need repeatable precision at scale without wallet-breaking cycle times. To be honest, it surprised me how far sintered parts have come in noise, density, and wear resistance.

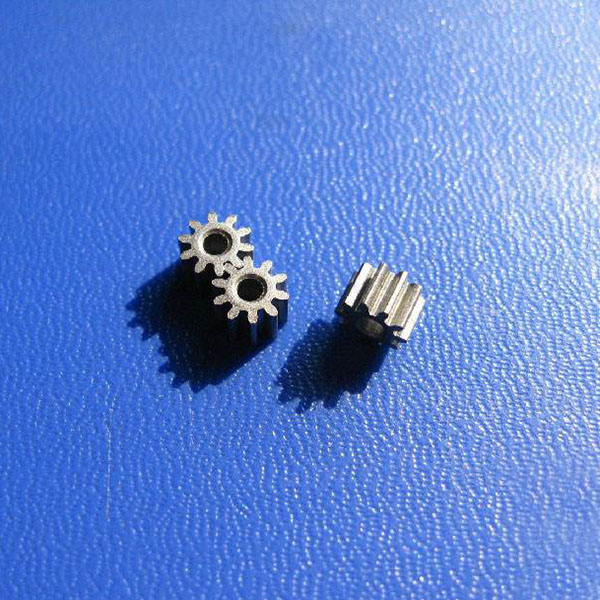

The model in focus here: Customized various non-standard sintered powder metallurgy gears, produced in TIANSHAN INTERNATIONAL MANUFACTURING INDUSTRY PARK NO.57, YUANSHI, SHIJIAZHUANG CITY, HEBEI PROVINCE, CHINA. Certifications include ISO9001 and TS16949, which—paired with consistent tooling—are giving OEMs the confidence to qualify Sprockets Gear for appliances, e-bikes, compact transmissions, and light vehicles.
Industry trend check
There’s a quiet shift underway: EV auxiliaries and micro-mobility want low noise; home appliances demand cost-down with durability; and sports equipment needs clean looks with corrosion resistance. Powder metallurgy (PM) hits that sweet spot—near-net shape, stable tolerance, and optional surface/heat treatments—so Sprockets Gear can launch faster with fewer machining passes.
How it’s made (short version, no fluff)
-
- Materials: Iron powder / iron-alloy powder per MPIF-grade selection; target density 6.0–7.2 g/cm³ (Fe).
- Methods: Blending with lubricants → Compaction in a precision die → Sintering (typically 1120–1150°C, protective atmosphere) → Optional sizing/re-strike.
- Finishes: Blackening, Dacromet, polishing, sand blasting, electroplating.
- Heat treatment: Ordinary quench, carburizing, nitriding (they say “Ritriding”), high-frequency quench—chosen by torque and wear targets.
- Testing: Gear accuracy per ISO 1328; load rating calc per ISO 6336; surface/hardness mapping and micrograph checks; CMM dimensional audit.
Typical product specs (real-world use may vary)
| Tooth module range | ≈0.5–3.0 |
| Tolerance (critical dims) | ±0.002 mm on selected features |
| Density | 6.0–7.2 g/cm³ (Fe) |
| Surface hardness (after carburizing) | ≈HRC 58–62 |
| Noise | Low-noise profile; sizing reduces runout ≈≤0.03 mm |
| Corrosion option | Dacromet: up to 96 h salt-spray (≈) per internal tests |
| Service life | Up to 10–20k h at moderate load; depends on duty cycle |
Where they fit best
- Sports/fitness drivetrains needing quiet runs.
- Home appliances (washers, mixers) with long duty cycles.
- Transmission parts in light vehicles and garden equipment.
- Robotics with compact torque demands. Many customers say the consistent tooth profile helps reduce backlash “tuning time.”
Vendor snapshot (apples-to-oranges, but useful)
| Supplier type | PM gears (this product) | CNC-machined steel gears | Injection-molded plastic gears |
| Unit cost @ volume | Low | Medium–High | Lowest |
| Tolerance | Tight; ±0.002 mm features | Very tight | Moderate |
| Torque capacity | Medium–High | High | Low–Medium |
| Noise | Low (sized teeth) | Low–Medium | Low |
| Lead time | Short after tooling | Medium | Short |
Customization notes
Tooth count, module, hub geometry, keyways/splines, and coatings are all fair game. Heat-treat recipes (carburize vs HF quench) are tuned to torque, contact stress, and target hardness. I’ve seen RFQs with aggressive ±0.002 mm flatness on mounting faces—achievable with the right sizing and post-op plan. Typical validation includes CMM reports, hardness mapping, ISO 1328 grade checks, and life testing under ISO 6336-calculated loads.
A couple of quick cases
- Appliance drive: Switched from machined steel to PM Sprockets Gear, cut unit cost ≈18% and reduced motor noise by ~2–3 dB(A). Cpk on pitch diameter measured >1.67 across three lots.
- E-bike idler: Dacromet-coated version passed ≈96 h salt-spray, with wear rate down ~22% after carburizing versus baseline nitrided sample (internal bench).
Final thought: the “cheap processing technic” line undersells it. When the geometry is optimized for PM and the finish is dialed in, these parts look and perform premium.
Citations
- MPIF Standard 35 – Materials Standards for PM Structural Parts, Metal Powder Industries Federation.
- ISO 6336 – Calculation of load capacity of spur and helical gears, International Organization for Standardization.
- ISO 1328 – Cylindrical gears — ISO system of accuracy, International Organization for Standardization.
