As an ISO9001/TS16949 certified manufacturer, we specialize in precision sintered metal components with 15+ years of expertise. Our advanced facilities in Hebei Province, China enable production of high-quality Custom textile warp knitting machine chain blocks with exact specifications.
Visit Our Facility
TIANSHAN INTERNATIONAL MANUFACTURING INDUSTRY PARK NO.57, YUANSHI, SHIJIAZHUANG CITY, HEBEI PROVINCE, CHINA

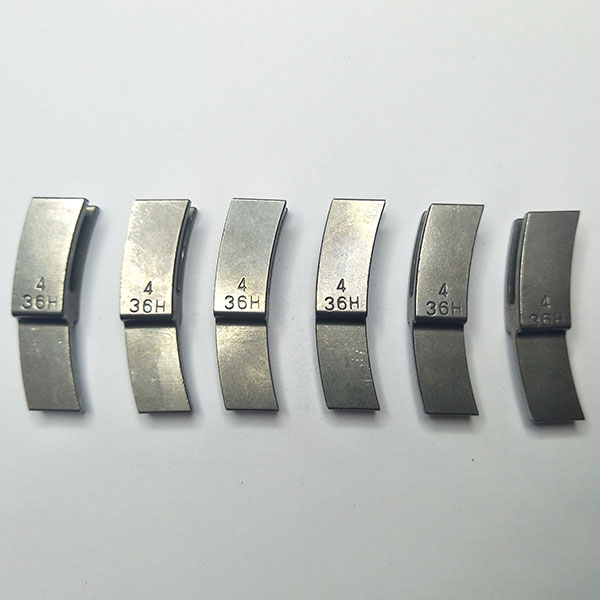

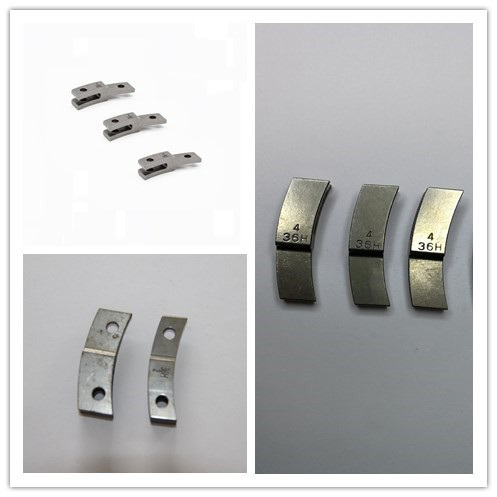

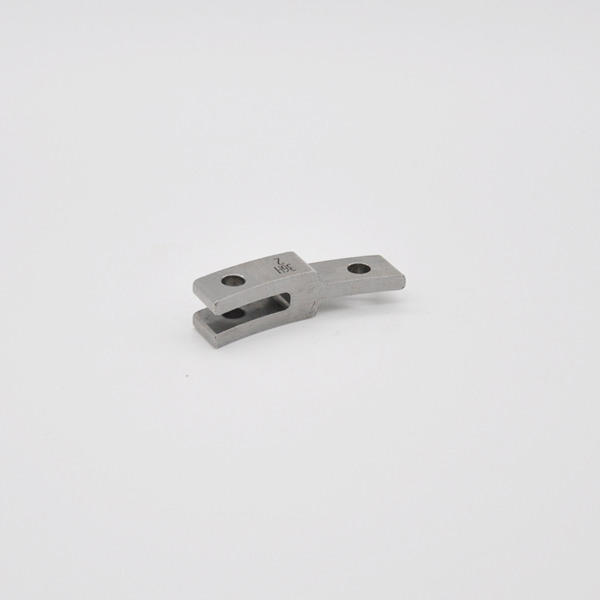

About Our Chain Blocks
The Custom textile warp knitting machine chain block is a precision-engineered component crucial for modern textile manufacturing. Designed for warp knitting machinery, these chain blocks ensure precise needle positioning synchronization that determines fabric quality.
Key features:
- Material Composition: High-grade iron powder composites
- Density: 7.2g/cm³ (±0.1 tolerance)
- Hardness: HRA70-HRA78 Rockwell scale
- Surface Treatment: CNC machining + oil immersion
- Precision Tolerance: ±0.01mm dimensional accuracy
- Certifications: ISO9001/TS16949, SGS
Technical Specifications
| Parameter | Specification | Industry Standard | Testing Method |
|---|---|---|---|
| Density | 7.2 g/cm³ ±0.1 | MPIF Standard 42 | Archimedes method |
| Hardness | HRA70-HRA78 | ASTM E18 | Rockwell hardness test |
| Tensile Strength | 500-650 MPa | ISO 6892-1 | Universal testing machine |
| Surface Roughness | Ra ≤0.8μm | ISO 21920 | Profilometer measurement |
| Dimensional Tolerance | ±0.01mm | ISO 2768-1 | Coordinate measuring machine |
| Fatigue Life | 10⁷ cycles at 15kN | ISO 1099 | Servo-hydraulic testing |
| Thermal Stability | -30°C to 150°C | ISO 11359 | Thermomechanical analysis |
Industry Applications
Custom textile warp knitting machine chain blocks are essential components in modern textile manufacturing facilities. Their precision engineering enables:
- High-Speed Warp Knitting: Synchronizing needles at speeds up to 3,500 rpm
- 3D Spacer Fabric Production: Maintaining precise stitch formation parameters
- Technical Textiles Manufacturing: Enabling complex pattern creation
- Lace Production Systems: Ensuring consistent tension across the fabric width
- Automotive Interior Textiles: Supporting high-strength fabric requirements
According to research published in the Textile Research Journal, properly engineered chain blocks can increase machine efficiency by up to 22% and reduce fabric defects by 17-35% compared to conventional components.
Powder Metallurgy Manufacturing Process
Our Custom textile warp knitting machine chain blocks are manufactured using advanced powder metallurgy processes:
- Material Selection: High-purity iron powder (ASC 100.29) with alloying elements
- Compaction: 600-800 MPa pressure in CNC-controlled presses
- Sintering: 1,120-1,150°C in hydrogen-nitrogen atmosphere
- Secondary Operations: CNC machining, sizing, and coining
- Surface Enhancement: Steam treatment or oil impregnation
- Quality Control: 100% dimensional verification and statistical sampling
The powder metallurgy process creates a unique microporous structure that retains lubricants, enhancing the component's wear resistance and operational lifespan in high-speed textile applications.
Technical FAQ
We use diffusion-bonded iron powder composites (Fe-Cu-C alloy systems) with optional additions of nickel, molybdenum, or phosphorus to enhance specific properties. The material composition is customized based on application requirements, with typical material standards including MPIF FLN2-4405 or FLN4-4405.
Standard dimensional tolerance for Custom textile warp knitting machine chain blocks is ±0.01mm for critical dimensions. For specialized applications requiring tighter tolerances, we can achieve ±0.005mm using secondary CNC machining operations and specialized compaction tooling.
Our production implements Statistical Process Control (SPC) with real-time monitoring of 18 critical parameters. Each production batch undergoes density verification, hardness testing, and metallographic analysis. Additionally, we perform 100% dimensional inspection using vision systems and CMM technology.
Standard treatments include oil impregnation and steam oxidation. Optional enhancements include zinc or nickel plating, DLC (Diamond-Like Carbon) coating, and tribological surface treatments that reduce coefficient of friction by up to 60%. Surface roughness can be controlled between Ra 0.4-1.6μm.
Standard lead time is 6-8 weeks from design approval, including 4 weeks for tooling and 2 weeks for production. We maintain buffer stocks for common configurations that reduce lead time to 2-3 weeks. Emergency production can be completed in 15 days with expedited processing.
We offer three protection levels: Standard (500h salt spray resistance), Enhanced (1000h resistance with micro-porosity sealing), and Premium (2000h protection with multi-layer nickel-zinc coatings). The patented steam oxidation creates protective magnetite layers without dimensional changes.
Our facilities are certified to ISO 9001:2015, IATF 16949:2016, and ISO 14001:2015. Specific certifications relevant to Custom textile warp knitting machine chain blocks include MPIF Standard 35 for material properties and ISO 5755 for sintered metal materials specification.
Industry Trends & Technical Developments
The global market for Custom textile warp knitting machine chain blocks is projected to grow at 6.8% CAGR through 2028 according to Textile World Magazine. Key technological drivers include:
- Adoption of nanotechnology-enhanced powder materials with improved wear resistance
- Integration of IoT sensors in sintered components for predictive maintenance
- Development of hybrid manufacturing combining powder metallurgy with additive manufacturing
- Implementation of AI-assisted compaction control systems for zero-defect manufacturing
- Eco-friendly manufacturing processes reducing energy consumption by 25-40%
Recent research from the Wear Journal indicates that advanced surface-engineered chain blocks can increase service life by 300% compared to conventional components when operating under high-speed conditions above 2,500 rpm.
Industry References & Research
1. "Performance Optimization of Warp Knitting Machine Components Through Advanced Powder Metallurgy" - Journal of Materials Processing Technology (2023) DOI: 10.1016/j.jmatprotec.2023.117885
2. "Fatigue Life Enhancement in Textile Machinery Components Through Surface Engineering" - International Journal of Fatigue (2022) DOI: 10.1016/j.ijfatigue.2022.107065
3. "Digital Transformation in Textile Machinery Manufacturing" - Textile Research Journal (2023) DOI: 10.1177/00405175221151007
4. "Global Market Analysis: Precision Components for Textile Machinery 2023-2028" - Technavio Research Report Link
5. "Advanced Powder Metallurgy Techniques for High-Performance Industrial Components" - International Journal of Powder Metallurgy (2023) DOI: 10.31399/asm.journ.ijpm.2023.01
