Prototype Gear Manufacturing: powder-metal speed with production realism
If you’re racing against funding gates or DV build windows, Prototype Gear Manufacturing that mirrors final production is gold. And yes, powder metallurgy (PM) has quietly become the shortcut many teams use to prove torque, NVH, and cost targets—months earlier than the old playbook.

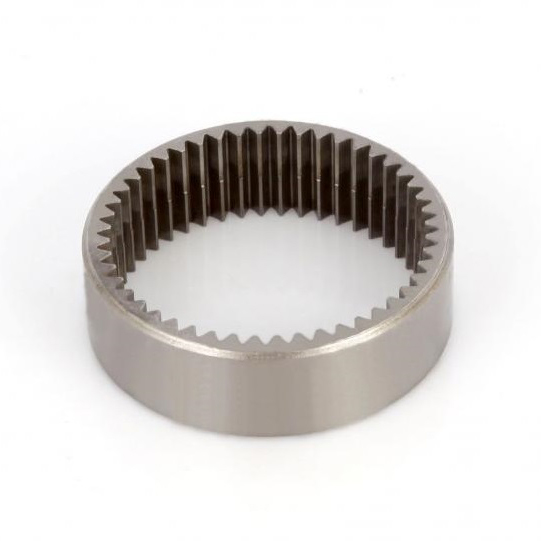

Product spotlight: Customized powder metal sintering internal ring gear
From TIANSHAN INTERNATIONAL MANUFACTURING INDUSTRY PARK NO.57, YUANSHI, SHIJIAZHUANG CITY, HEBEI PROVINCE, CHINA, this internal ring gear is built for quick iteration without throwing out production reality. Materials include iron, copper, and brass (or custom blends). OEM/ODM is standard—send CAD/STEP/PDF or even a sample and the team reverse-engineers the rest. Many customers say the first articles land faster than their test rigs are ready, which is… a good problem.
Why PM for Prototype Gear Manufacturing?
- Near-net shapes with internal tooth forms that are painful to mill or grind early on.
- Consistent porosity for oil-impregnation—handy for NVH and lubrication trials.
- Realistic hardness profiles after quench/tempering, black oxide, or full hardening.
Technical specifications (summary)
| Technology | Powder Metallurgy, sintering + optional post densification |
| Material standards | MPF series; MPIF 35; DIN 30910; JIS Z2550 |
| Density | ≈ 6.2–7.1 g/cm³ (real-world use may vary with alloy/compaction) |
| Macro hardness | 45–80 HRA (post-treatment dependent) |
| Ultimate tensile strength | ≈ 1650 MPa |
| 0.2% yield strength | ≈ 1270 MPa |
| Surface treatments | Quenching, polishing, oil impregnation, black oxide, full hardening, or custom |
| Size | Per drawing (internal ring gear profiles welcome) |
Process flow (how prototypes actually get done)
- Design handoff: CAD/3D/PDF or physical sample; gear data per ISO 1328 (module, tooth count, helix, quality).
- Material selection: per MPIF 35 grade; iron/copper/brass or custom mixes for strength vs. machinability.
- Compaction & sintering: controlled atmosphere; density set by tonnage and powder grade.
- Post-process: quench/temper; optional resin or infiltration; oil impregnation for NVH; black oxide for corrosion.
- Finish: light hone or grind if accuracy class targets demand it.
- Validation: hardness (ISO 6508), dimensional (ISO 1328), tooth strength calc (ISO 6336), microstructure checks (ASTM/MPIF).
Application scenarios
Automotive e-axle parking locks, steering actuators, small planetary gearsets in robotics, e-bikes, and compact reducers. In fact, several teams prototype with PM then keep the same route for SOP to hit cost targets.
Vendor landscape: what to pick, when
| Vendor type | Lead time (≈) | Strengths | Trade-offs |
|---|---|---|---|
| CNC machine shop | 1–3 weeks | Flex geometry; tight tolerances; quick tweaks | Internal ring gears are costly; not PM-like porosity |
| Metal 3D printing bureau | 3–10 days | Complex features; fast iteration | Surface roughness; post-machining; different microstructure |
| Powder metallurgy specialist | 2–4 weeks (tooling-permitting) | Production-like density, cost, NVH; ideal for Prototype Gear Manufacturing | Tooling or compaction limits; tightest classes may need finishing |
Standards, testing, and certifications
- Design/accuracy: ISO 1328-1; AGMA-based tolerances as required.
- Strength/basic rating: ISO 6336 series.
- PM materials: MPIF 35; DIN 30910; JIS Z2550.
- Hardness: ISO 6508 (Rockwell).
- Quality systems: ISO 9001; automotive programs typically request IATF 16949.
Mini case study (quick hit)
A robotics OEM needed a quiet internal ring gear for a compact reducer. PM prototypes (oil-impregnated, black oxide) cut rattling by ≈3 dB(A) versus a hastily milled baseline, met target density at ~6.9 g/cm³, and survived 1.5M load reversals in bench tests before wear thresholds—good enough to green-light pilot builds. Honestly, that’s the kind of win teams remember.
Customization notes
Submit module/tooth data, helix angle, runout limits, and heat-treat specs. Surface: choose quench/temper for strength or oil impregnation for smoother NVH. If you’re chasing premium accuracy, request light grind/hone after sinter—yes, even for Prototype Gear Manufacturing, it pays off.
Origin: TIANSHAN INTERNATIONAL MANUFACTURING INDUSTRY PARK NO.57, YUANSHI, SHIJIAZHUANG CITY, HEBEI PROVINCE, CHINA.
Authoritative citations
- MPIF Standard 35: Materials Standards for PM Structural Parts, Metal Powder Industries Federation.
- ISO 1328-1:2013, Cylindrical gears — ISO system of accuracy.
- ISO 6336 series, Calculation of load capacity of spur and helical gears.
- ISO 6508-1:2016, Metallic materials — Rockwell hardness test.
- IATF 16949:2016, Automotive Quality Management System.
